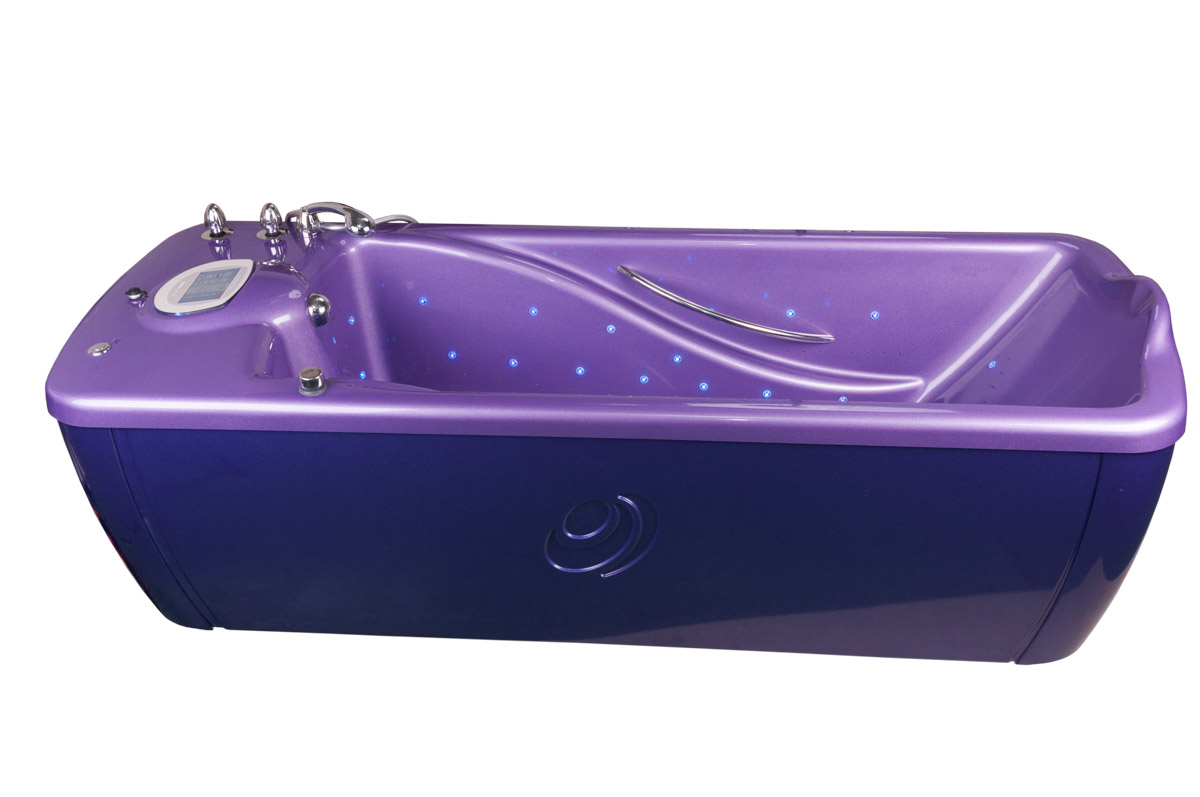

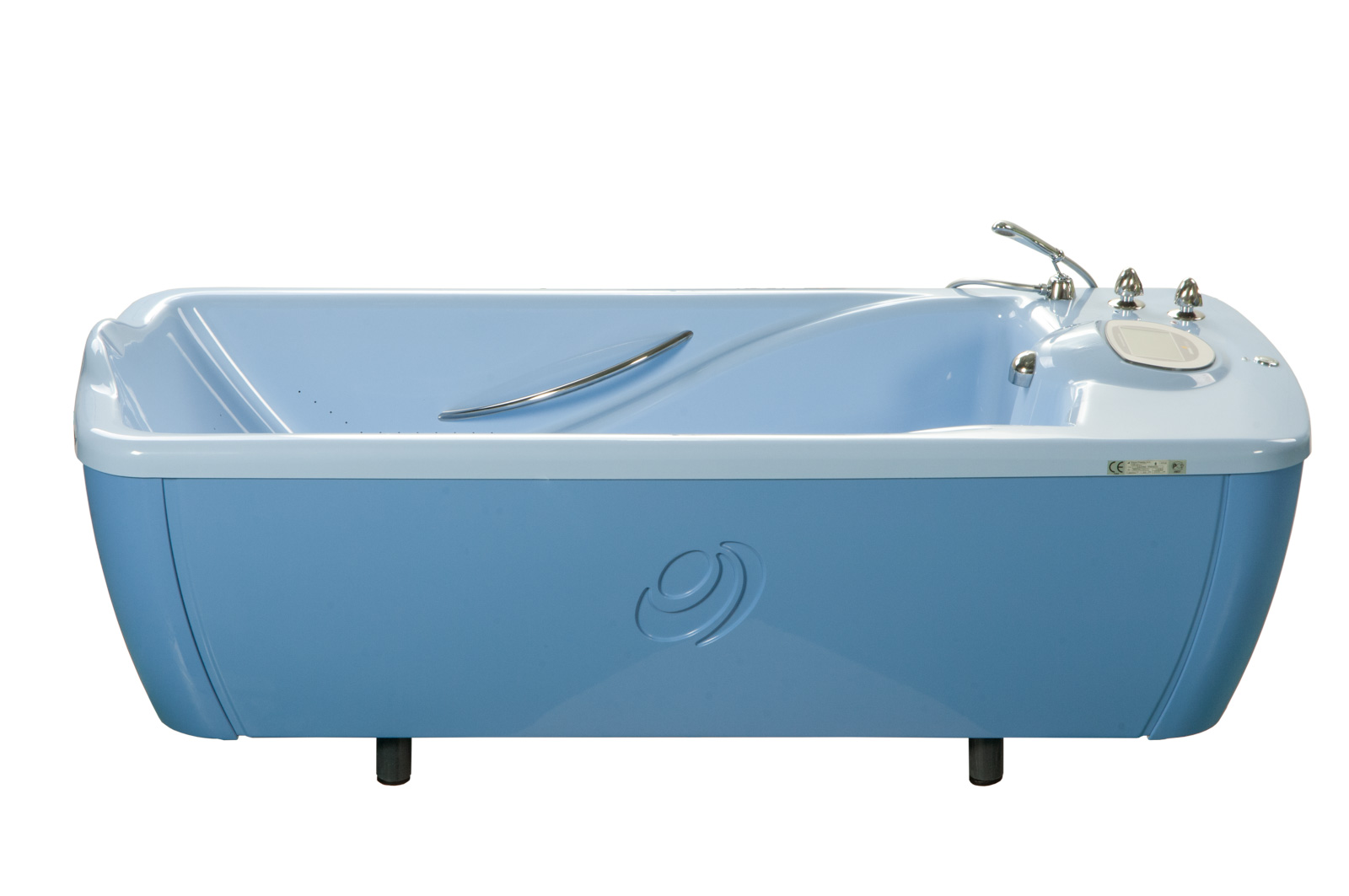

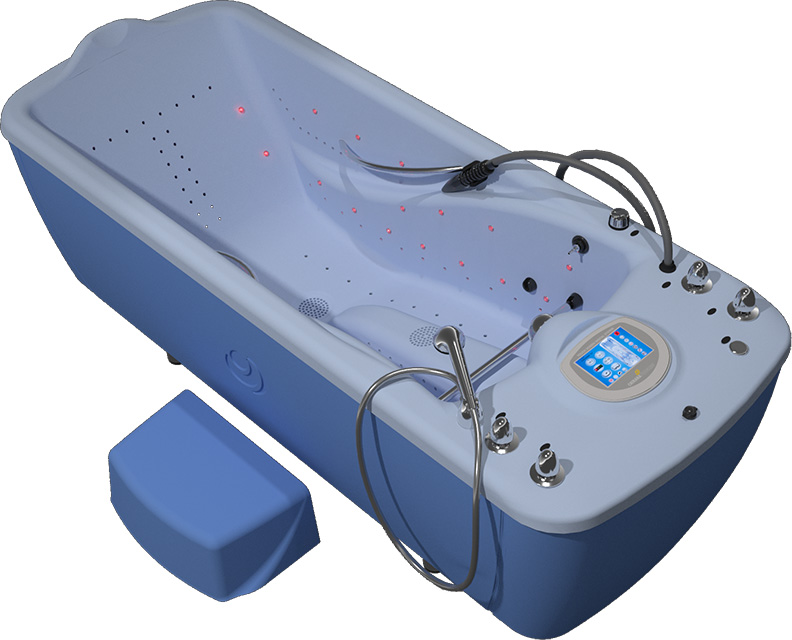

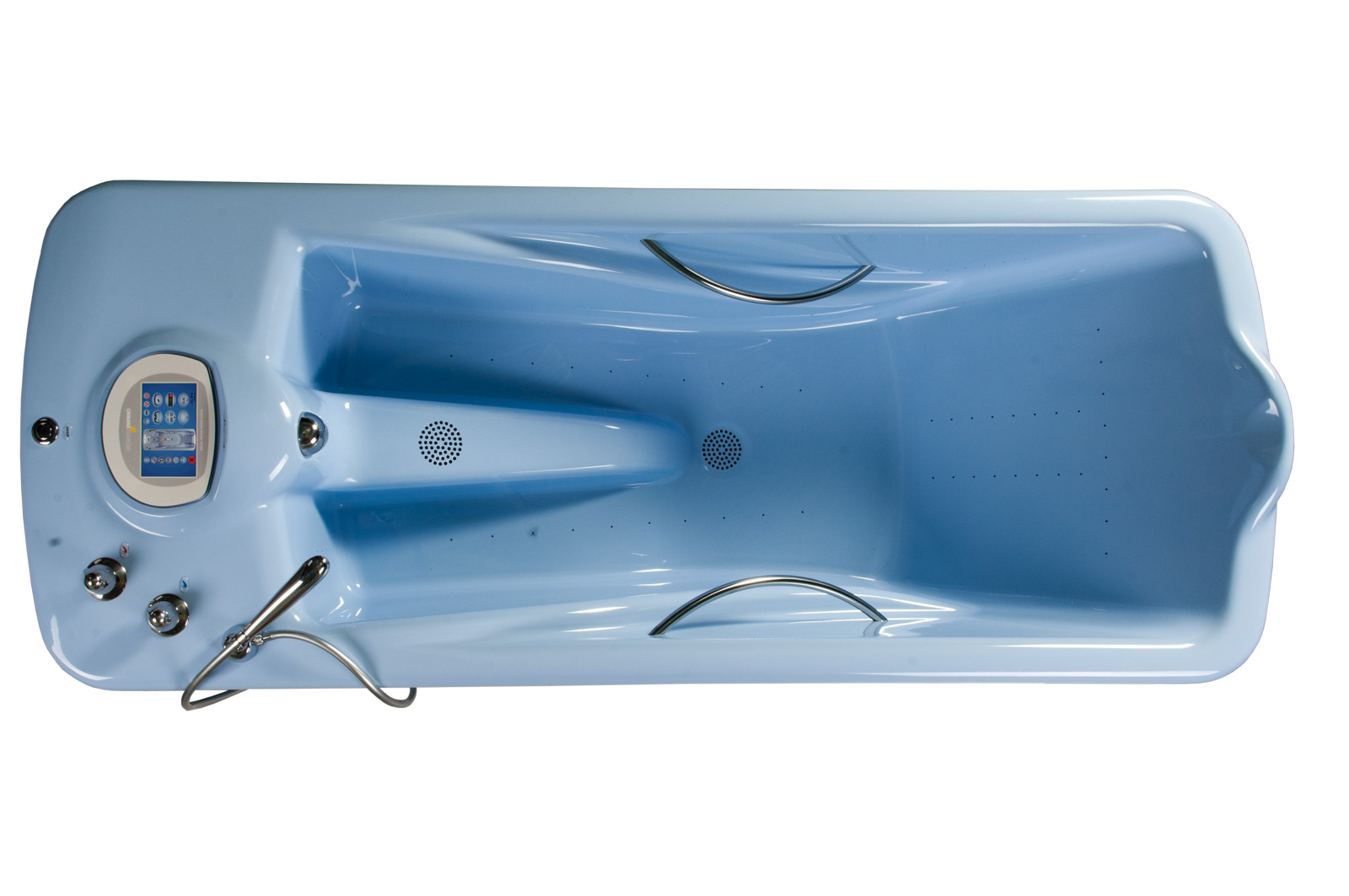

Laguna Tornado – computer-controlled hydromassage bath

Laguna Tornado – computer-controlled hydromassage bath

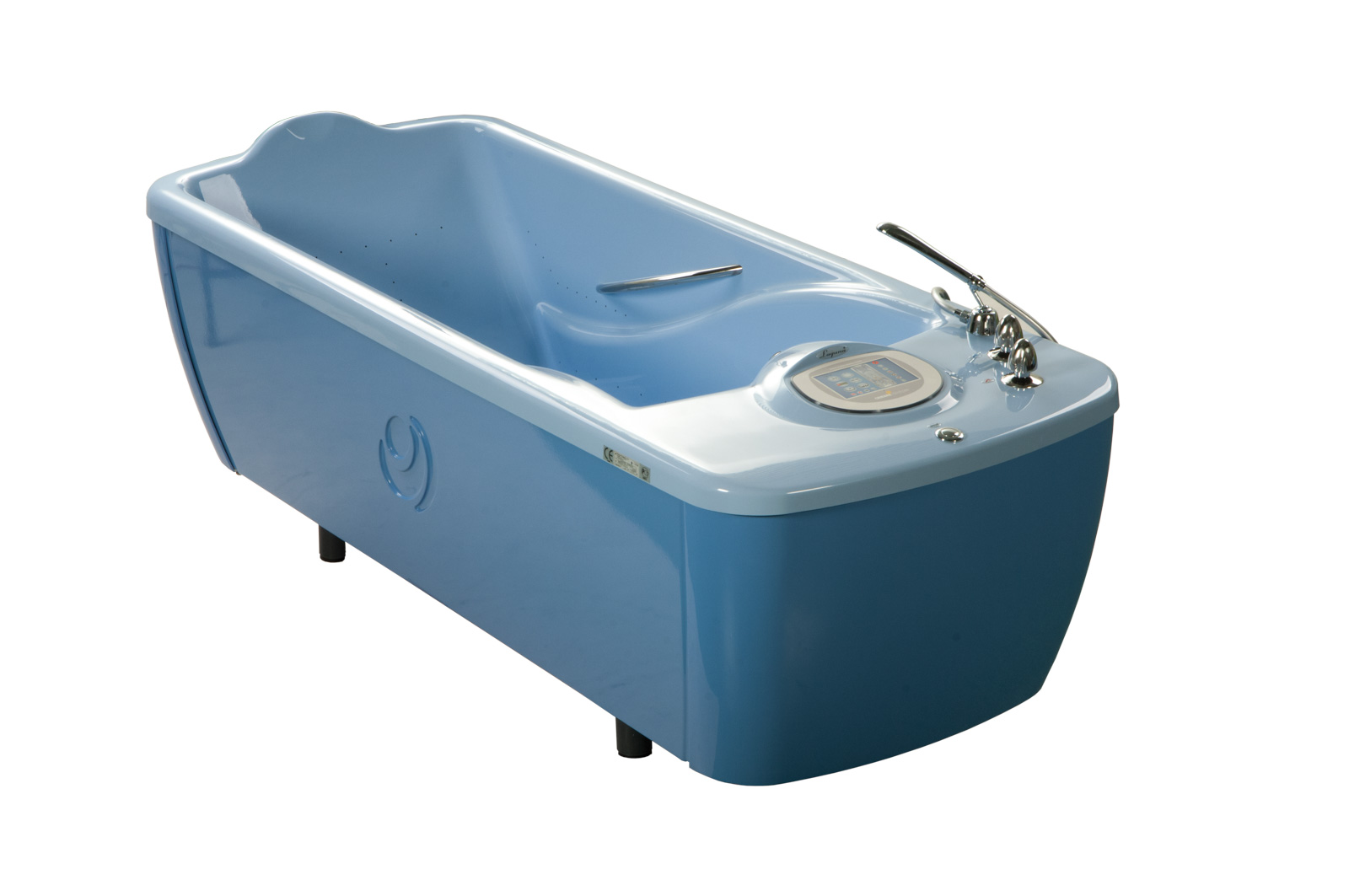

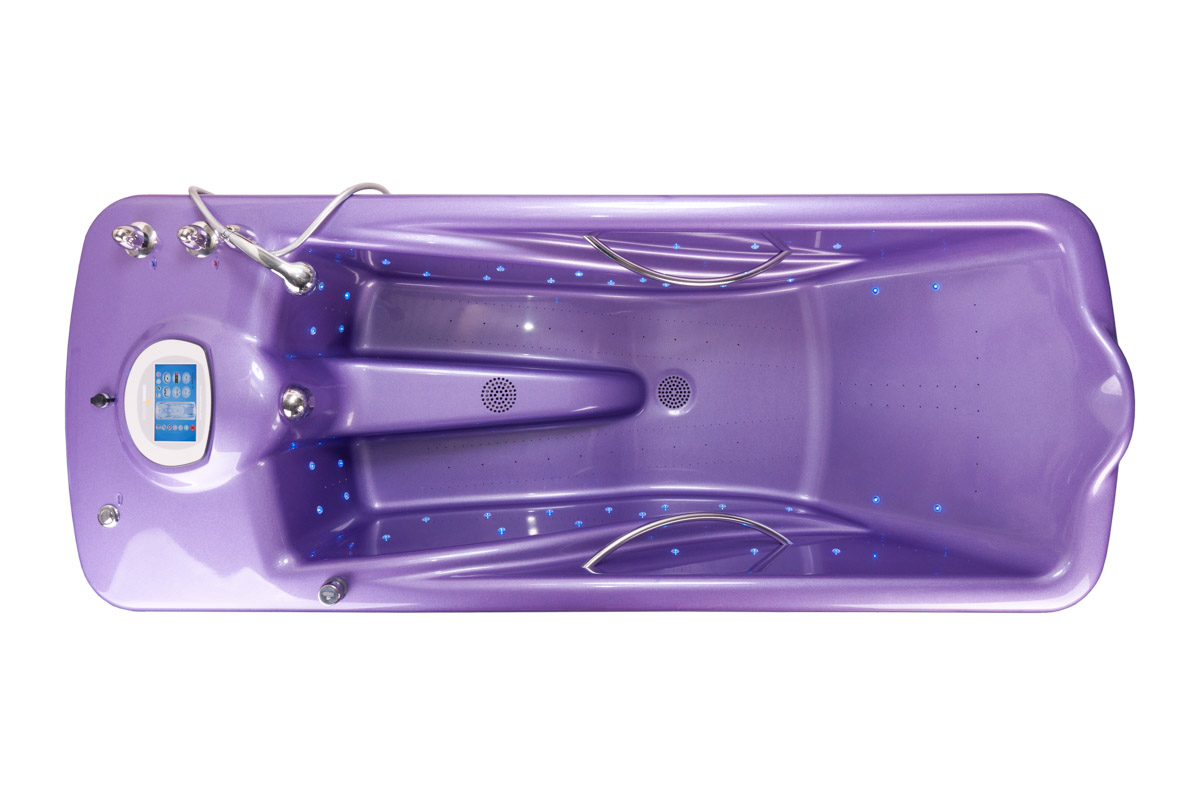

Computer-controlled hydromassage bath with intelligent and automatic functions and simple operation using a large touch screen. The bathtub has a powerful massage system with several massage zones.

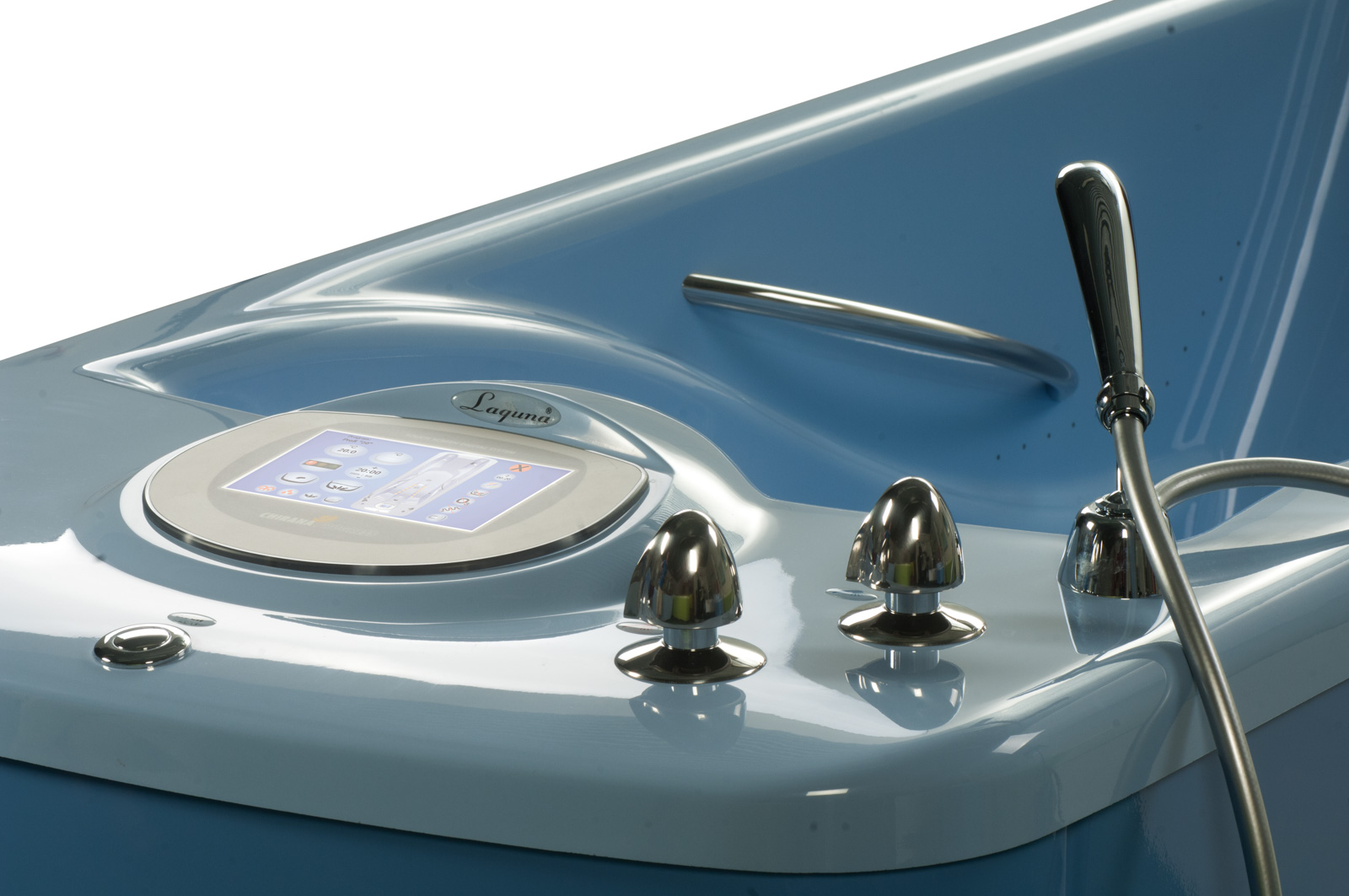

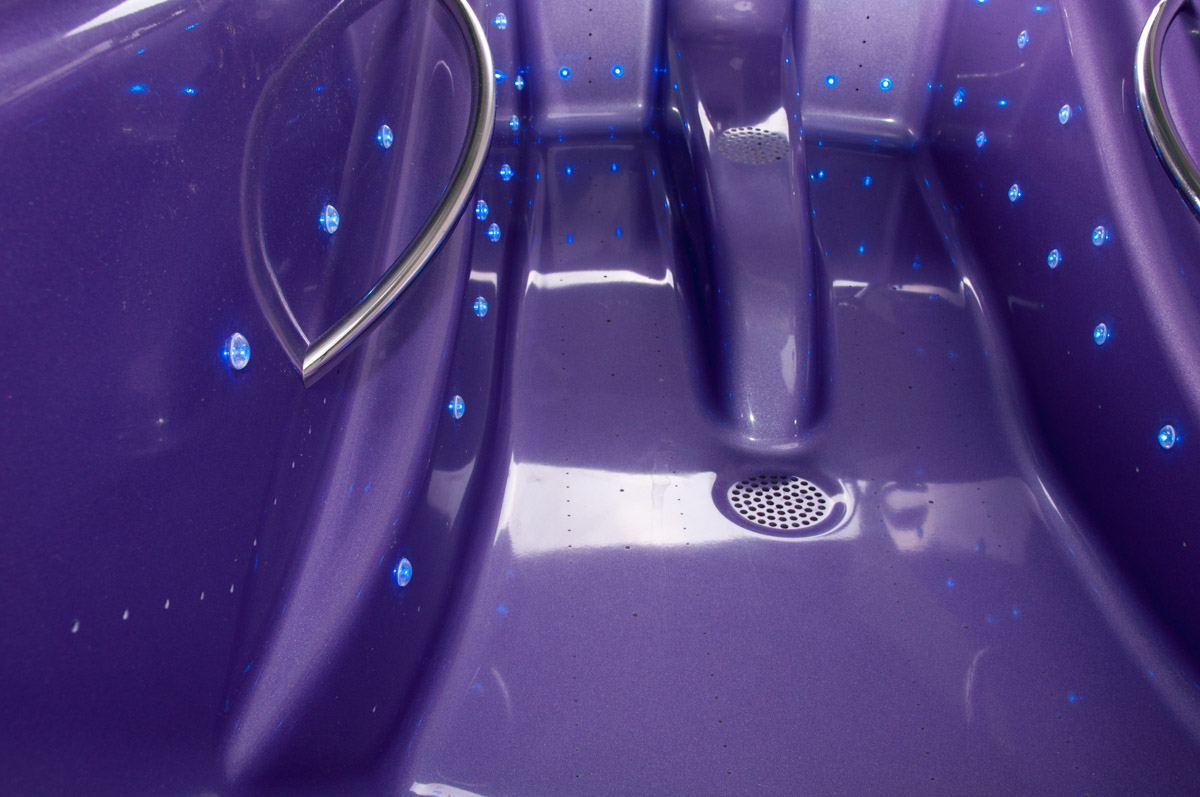

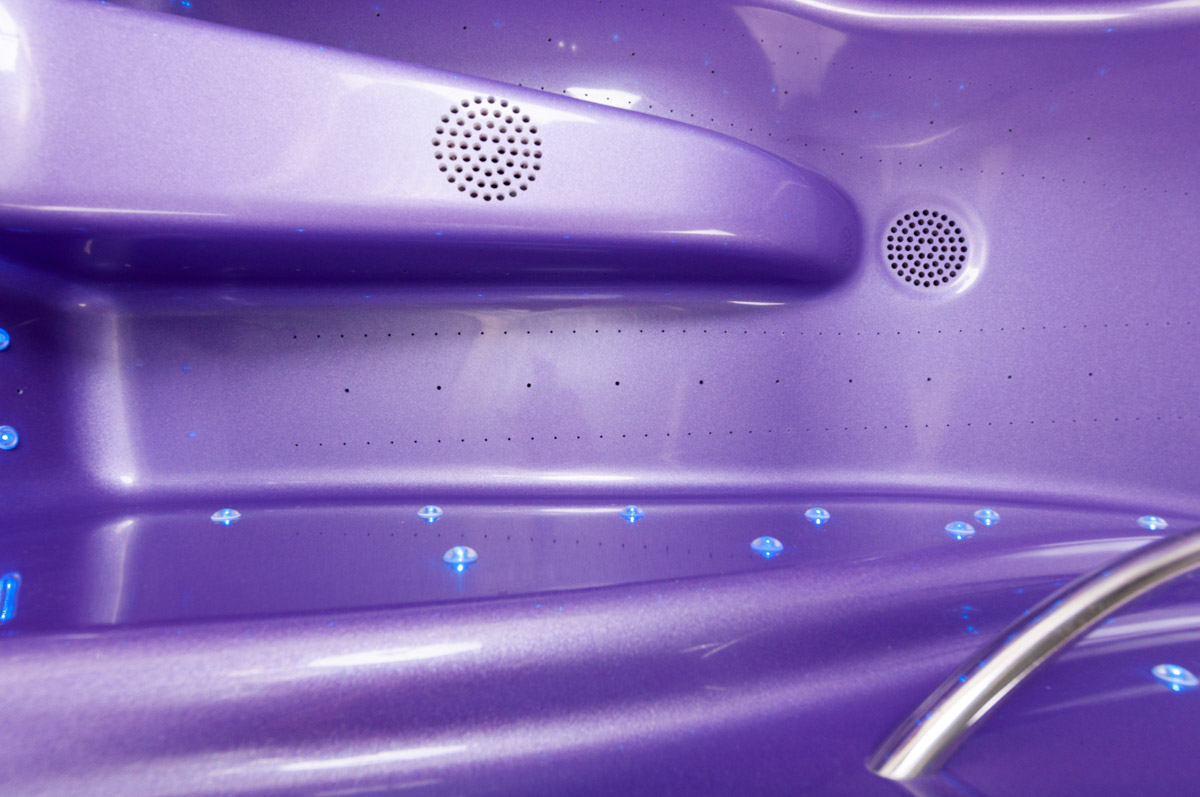

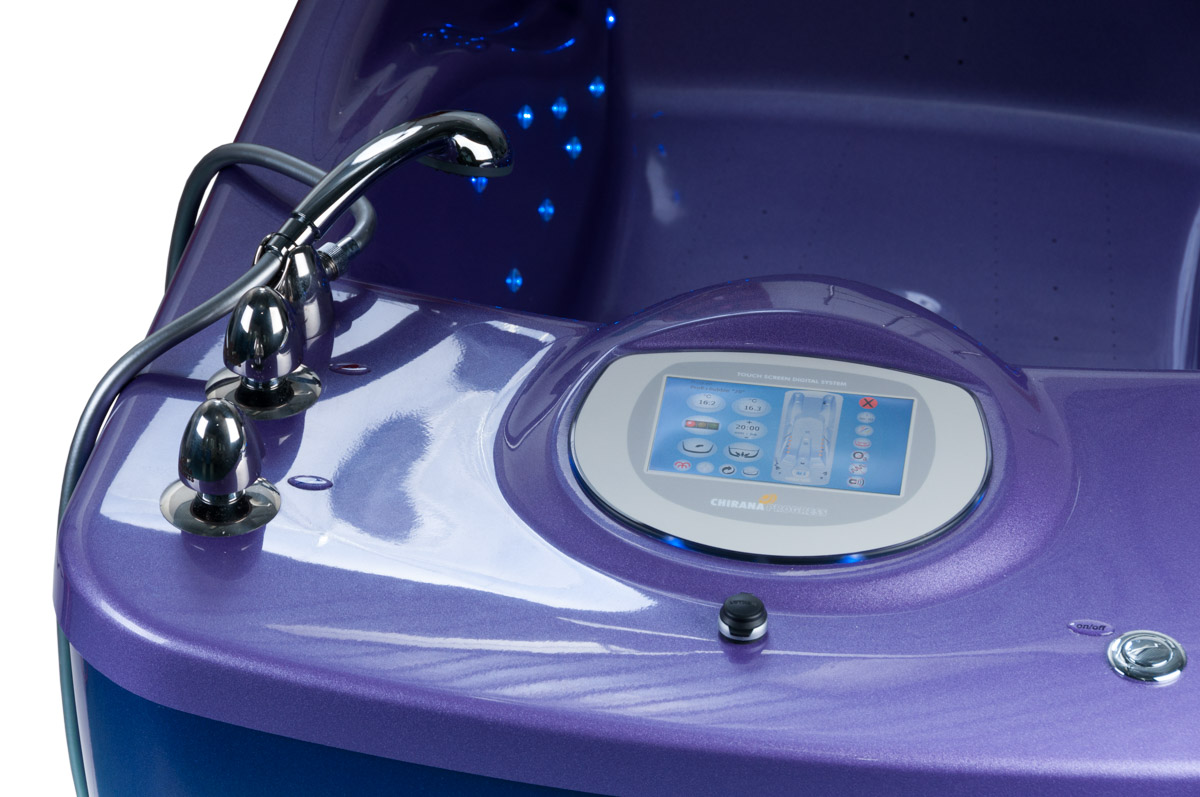

Laguna Tornado is operated via a 7″ colour touch screen (E3) and has 124 hydromassage jets in 5 independently working zones (soles and bottom, inner legs, hips, upper limbs, back). It offers 28 built-in programs, an unlimited number of user programs, continuous, sinus, wave and lymphatic massage, fully automatic filling with electronic temperature control, water filtration, automatic control of water temperature and water level during the procedure, fully automatic draining and automatic rinsing of the massage system. Optional equipment includes air massage with 180 jets, subaqual massage, chromotherapy with 40 light units, pulse massage, an ozonator, a one-step stair and a foot rest.

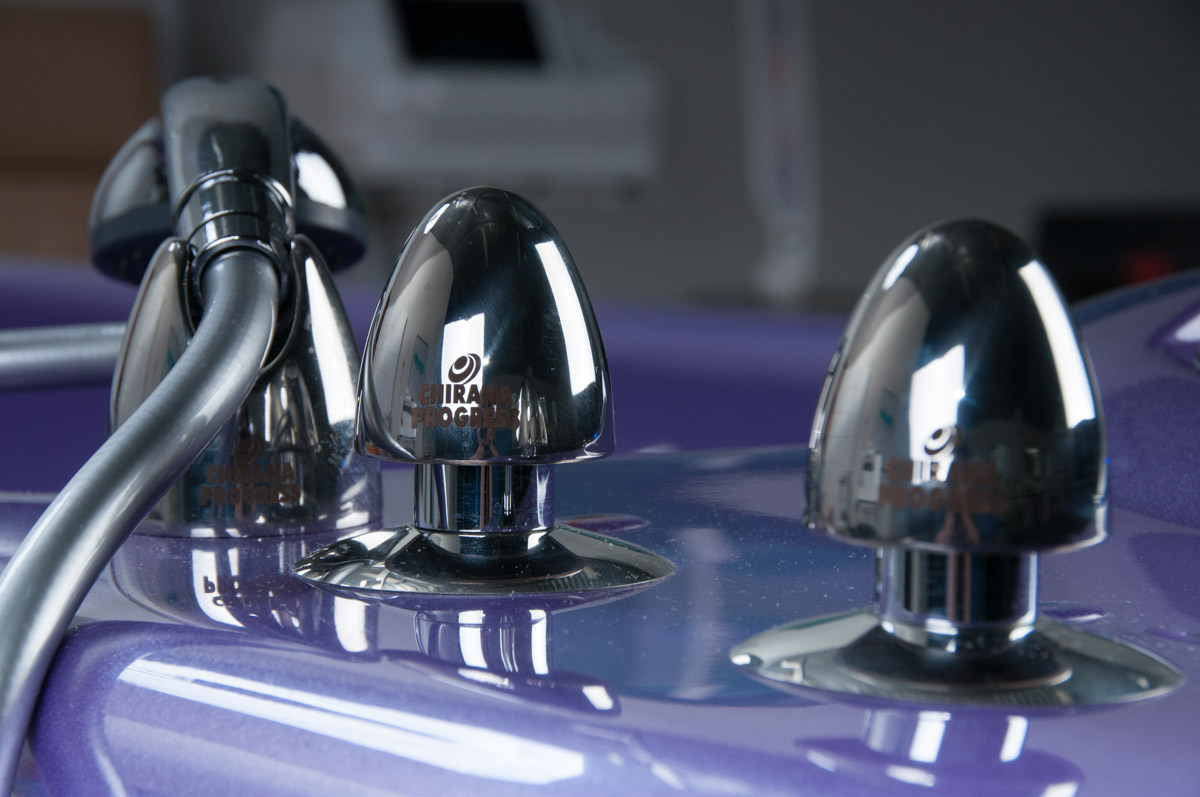

Baths of the Laguna series, made by Chirana Progress in Piešťany, Slovakia, are whole-body tubs designed for comprehensive balneotherapy of patients of all age groups under professional supervision weighing up to 150 kg. They have an anatomically shaped tub interior, stainless-steel control, filling and stabilising elements and height-adjustable legs. The series includes Laguna, Laguna Plus, Laguna Bubble, Laguna Plus Bubble, the computer-controlled Laguna Tornado and the Laguna Compact versions, 25 cm shorter.

Properties

Maximal water capacity300 l
Useful water capacity200 l
Filling time: useful capacity1,6 – 2,5 min
Drainage time: useful capacity1,8 – 2,1 min
Hot and cold water connections2×1″
Maximum hot water temperature60°C
Max. pump water flow433 l/min
Max. pump pressure0,36 MPa
Power input3500 VA
Power supply3 x 400 V / 50(60) Hz
Weight140 kg
Dimensions in mm (l x w x h)2200 x 870 x 790-815

CONTROL FUNCTIONS

7" full colour touch screen●
Intelligent filling to desired temparature●
Optimizing water volume depending on the size of patient●
Procedure timer 0-99 min●
Sound signal for procedure end●
Real time and date display●
Automatic plannig of the service check●
Fully automated procedures process●
28 in build programs●
Unlimited No. of the new program creation●
Series of the programs up to 5 procedures●
Autostart after patient entering the bathtub●
Automatic protection against overflow●
Automatic water mixing●
Intelligent filling from the recycling systemO
Water filters with automatic flushing●
Electronic thermometer of the filling water●
Electronic thermometer of the water in tub●
Automatic water temperature adjustment during procedure●
Auto water level adjustment during procedure●
Automatic discharge to the canalization●
Automatic discharge into the recycling systemO
Automatic rinsing of the massage system●
Automatic disinfection ( 2 modes)O
Hygienic shower●
Hot water for hygienic shower●

PROCEDURES

Balneologic bath●
Hydromassage. 5 zones●
Drilled hydromassage jets/No.●/124
Electronic hydromassage intensity adjustment●
Subaqual massage with the air mix regulationO
Massage hose electronic pressure indicator●
Pulsating massage with interval 1s, 2s or 3 secO
Sinusoidal massage●
Wave massage●
Lymphatic massage●

AIR MASSAGE

180 drilled jets with air blower and dryingO
28 jets water/air mix in bottom zone
Bubble grid connectorO
Bubble grid with 2000 micro holesO

OPTIONAL THERAPIES

Chromatotherapy/ RGB LEDO
Synchronized bottom illuminationO
Synchronized touch screen illuminationO
Ozone therapy with ejector system
Ozone therapy with air blower onlyO

EQUIPMENT

Log file - shows data about bath tub operationO
Voice communication in 5 languagesO
Stainless steel water pump●
Protection against the water pump dry run●
Electromagnetic water treatment system●
Complete drain of the hydromassage system●
Leg support removableO
Stainless steel handle for the patient●
Stainless steel components of the bath tub●
One stage stepO
Height adjustable legs●

CONTROL FUNCTIONS

7" full colour touch screen●
Intelligent filling to desired temparature●
Optimizing water volume depending on the size of patient●
Procedure timer 0-99 min●
Sound signal for procedure end●
Real time and date display●
Automatic plannig of the service check●
Fully automated procedures process●
28 in build programs●
Unlimited No. of the new program creation●
Series of the programs up to 5 procedures●
Autostart after patient entering the bathtub●
Automatic protection against overflow●
Automatic water mixing●
Intelligent filling from the recycling systemO
Water filters with automatic flushing●
Electronic thermometer of the filling water●
Electronic thermometer of the water in tub●
Automatic water temperature adjustment during procedure●
Auto water level adjustment during procedure●
Automatic discharge to the canalization●
Automatic discharge into the recycling systemO
Automatic rinsing of the massage system●
Automatic disinfection ( 2 modes)O
Hygienic shower●
Hot water for hygienic shower●

PROCEDURES

Balneologic bath●
Hydromassage. 5 zones●
Drilled hydromassage jets/No.●/124
Electronic hydromassage intensity adjustment●
Subaqual massage with the air mix regulationO
Massage hose electronic pressure indicator●
Pulsating massage with interval 1s, 2s or 3 secO
Sinusoidal massage●
Wave massage●
Lymphatic massage●

AIR MASSAGE

180 drilled jets with air blower and drying
28 jets water/air mix in bottom zone●
Bubble grid connectorO
Bubble grid with 2000 micro holesO

OPTIONAL THERAPIES

Chromatotherapy/ RGB LEDO
Synchronized bottom illuminationO
Synchronized touch screen illuminationO
Ozone therapy with ejector systemO
Ozone therapy with air blower only

EQUIPMENT

Log file - shows data about bath tub operationO
Voice communication in 5 languagesO
Stainless steel water pump●
Protection against the water pump dry run●
Electromagnetic water treatment system●
Complete drain of the hydromassage system●
Leg support removableO
Stainless steel handle for the patient●
Stainless steel components of the bath tub●
One stage stepO
Height adjustable legs●
